Bi-directional Fully Rubber Lining Knife Gate Valve

Working Pressure:
DN50-DN200 16bar
DN250-DN400 10bar
Design Standard:
Flange Standard:

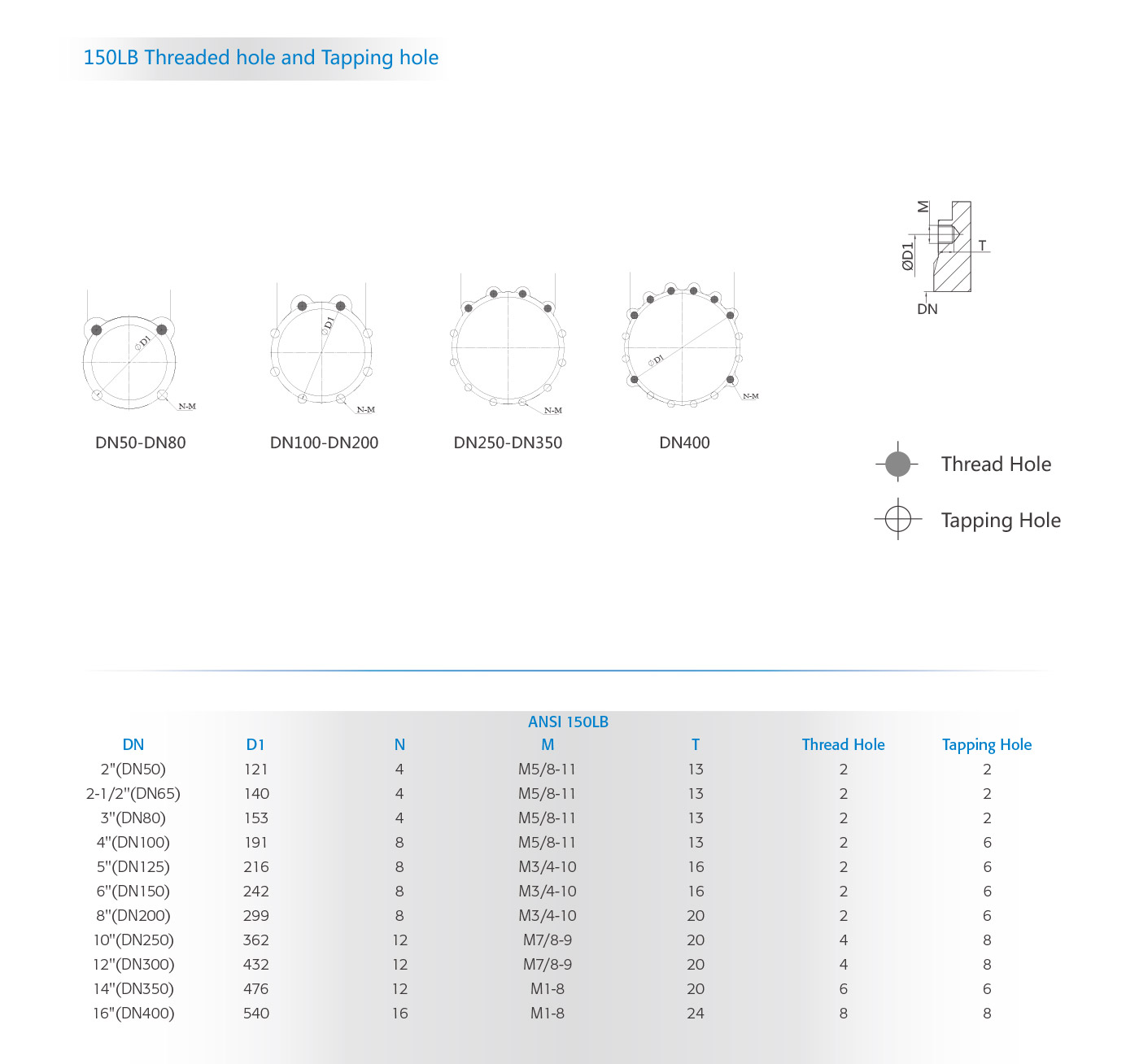

DIN PN10, PN16, 150LB, JIS 10K, TABLE E/D
Face to Face:
Testing Standard:
handwheel, electric, pneumatic, hydraulic, sprocket, electro-hydraulic, gear, lever
Main Material:
F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Disc Material:
F55, F53, 2205, SS310, SS316L, SS316, SS304
Sealing Material:
Aramid fiber, high-water based fiber, rubber, PTFE
Applicable Medium:
Applicable for coal in power plant, slag discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.

QJ Series No groove bi-directional seal rubber lining knife gate valve, Ductile iron body, rubber lining design,avoiding the media corrode the body, the bottom of the body with groovless. When the valve is closed, the bottom of the gate edge contact with the seal and then compress the seal into the groove in the body and sealed gate realization; when the gate opens, separate gate from the bottom edge of the seal, seal will bounce to same level as groove, which will prevent the media sediment accumulated in the body cavity of the groove, no clogging, no residue,pipe easy to clean, so as to effectively improve the sealing effect knife gate valve to prevent leakage when the valve is closed.
